Growler 1000 4-in Hydraulic Dredge Pump
with 2 Side Agitators
The DAE Pumps Growler 1000 Hydraulic Dredge Pump with 2 Side Agitators is a highly durable and reliable dredge pump for transporting solids and a variety of other materials.
Built with two heavy-duty excavator-grade agitators. The industry’s top dredge pump can move up to 13-58 cubic yards of solids per hour between 185 to 792 GPM. The DAE Pumps Growler 1000 provides non-clogging suction power to excavate and pump some of the most challenging dredging situations.
The suction power of the mighty pump can handle solids up to 1.25-in moving up to 70% solids by weight through a 4-inch discharge.
Get Pricing
Growler 1000 4-in Hydraulic Dredge Pump with 2 Side Agitators
Features
- 4-Inch Pump
- 185 – 792 GPM
- 2 Side Agitators
- Solids Handling up to 1.255 in
- Up to 70% Solids by Weight
- Highly Durable Abrasion Resistant
- Over 150 Ft Head
- Interchangeable Hard Tooth Cutter Heads
- Robust Motor for Strong Torque
Benefits
Versatile Heavy Duty Solution
Growler 1000 series are heavy-duty, hydraulic submersible slurry pumps designed to handle a wide range of slurries and abrasive particles in submersible applications in mining and industry.
Growler pumps feature a rugged construction using the highest quality materials to ensure reliable performance and excellent service life. The high-quality hydraulic motors incorporate multiple protection features to detect the ingress of water or excessive temperatures to shut off the pump and prevent damage.
Large Cut Water Clearance
The pump casing features a large cut water clearance which allows the easy passage of large solids and reduces wear and erosion to improve service life and prevent loss of efficiency.
Integral Agitator
The 27% chrome white iron agitator assists in pumping slurries by breaking up large particles and agitating high concentrations of solids.
Oil Chamber Leakage Probe
The oil chamber incorporates a water leakage probe which detects when the water-to-oil ratio is too high and automatically shuts down the motor to prevent damage.
Heavy Duty Construction
The pump casing, impeller, backplate, and agitator are manufactured from high-quality 27% chrome white iron. This extremely tough construction material can withstand continuous use in heavy-duty applications and allows the pump to transfer abrasive and dense slurries with minimal wear. The pumps feature a replaceable back plate allowing for simple servicing and easy replacement of worn components.
Motor Insulation
Motor insulation is used to ensure reliable operation in heavy-duty applications in temperatures up to +70 °C.
Support Frame and Strainer
A heavy-duty mild steel frame with a round base and strainer provides excellent stability and durability whilst preventing blockages.
Double Mechanical Seal
A double mechanical seal provides excellent shaft sealing between the hydraulic motor and the wet end. The seals are oil bath lubricated and feature carbon/ceramic seal faces in the wet end and tungsten ceramic faces in the drive end to provide excellent durability and service life across a wide range of duties and applications.

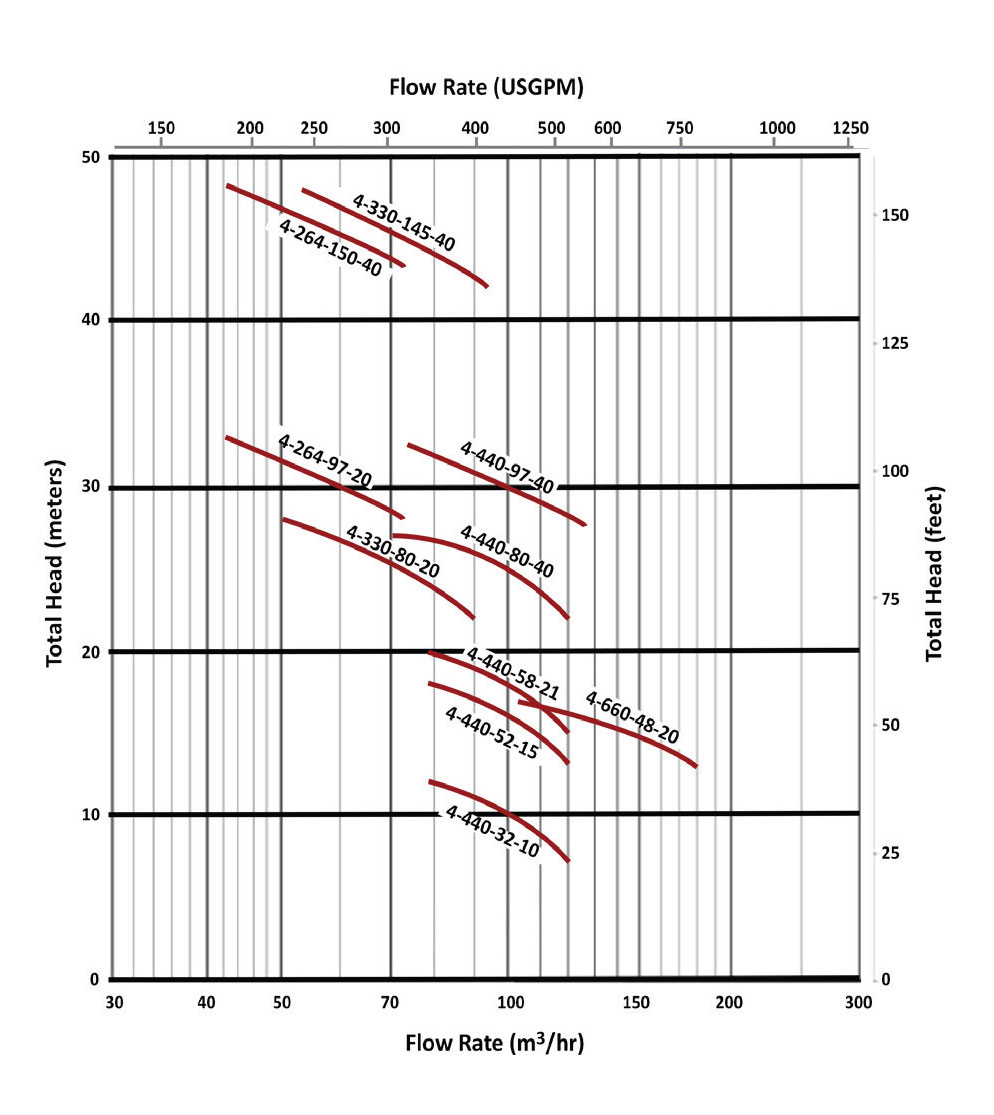

Pump Curve
Accessories
Get turnkey solutions that include dredge hoses, slurry flow meters, power units, tanks for the collection and storage of slurry, and more. These accessories, such as tanks, are designed to integrate seamlessly into the overall pumping process, ensuring efficient material handling and process optimization. Choose from multiple sizes of slurry hoses for the transferring of materials, wireless flow meters for measuring the flow rate in gallons per minute of liquid, and power units for operation. Parts are always in stock and available for immediate shipping to anywhere in the US and the world.
Maintenance and Repair
Regular maintenance is essential for ensuring the optimal performance and longevity of slurry pumps, including electric slurry pumps and submersible slurry pumps. In demanding applications such as mining, dredging, and construction, pumps are often exposed to high viscosity slurries, abrasive materials, and challenging conditions that can accelerate wear and increase the risk of clogging. To address these challenges, modern slurry pumps are constructed with wear resistant materials and specially designed impellers and wear parts, significantly reducing the frequency of repairs and minimizing downtime.
One of the standout features of today’s electric slurry pumps is their easy maintenance. Many models are engineered for quick and straightforward replacement of wear parts and seals, allowing operators to perform routine maintenance with minimal disruption to operation. This not only helps to keep operating costs and energy consumption in check, but also ensures that the pump continues to deliver efficient and reliable performance, even when handling tough materials like fly ash or sediment.
Regular inspection and verification of key pump components—such as the impeller, seals, and pressure systems—are crucial for identifying signs of wear before they develop into major issues. By adjusting the impeller and replacing worn parts as needed, operators can optimize the pump’s efficiency and extend its service life. This proactive approach to maintenance is especially important in industries where downtime can be costly and where the security and reliability of pumping systems are paramount.
In addition to in-house maintenance, many manufacturers offer specialized repair services, spare parts, and expert technical support to help operators maintain the quality and performance of their slurry pumps. When selecting a pump, it’s important to consider not only its suitability for your specific application, but also the maintenance requirements and support services available. By investing in high-quality, wear resistant pumps and adhering to a regular maintenance schedule, operators can reduce operating costs, minimize downtime, and ensure safe, efficient operation across a wide range of industries.
Ultimately, prioritizing maintenance and repair is key to maximizing the productivity and reliability of your slurry pumping systems. Regular verification and prompt response to any issues help maintain the security and efficiency of your operation, allowing you to meet the demands of even the most challenging pumping applications.
Slurry Hoses
Flow Meters
Hose & Pipe Floats
Hydraulic Power Units
