Pipe Floats | Hose Floats

The DAE Pumps line of HDPE pipe float and hose floats are made from lightweight, high-density materials, providing great flexibility along with excellent impact resistance, making them ideal for a variety of pumps and dredging applications. It is often necessary to keep your pipeline afloat for ease of maintenance and to protect the seafloor. Our pipe floats and hose floats fit snuggly to cables, hoses, and pipes, preventing slippage and misalignment. The DAE Pumps pipe floats offer the highest in safety standards and do not degrade over time because they are made from molded polyethylene plastic with UV inhibitors.

HDPE floats are ideal replacements for older steel pontoons for several practical reasons. HDPE dredge floats outmatch steel pontoons by having a much lighter weight, making them easier to transport, and install. Additionally, HDPE pipe floats offer vastly improved corrosion over traditional steel pontoons, saving many hours of maintenance and replacements.

Get Pricing

Pipe Floats | Hose Floats

Pipeline Floats

Features:

  • High corrosion and UV resistance, resulting in longer product life
  • High impact strength, built to withstand rough seas and boat collisions
  • Lightweight material, offering ease of transportation and installation.
  • High wear resistance to abrasion
  • Strategically placed bolt holes allowing for evenly placed, non-slip installation

Available sizes for Air / Foam Filled Floats

Pipe float and hose float sizes are available to fit pipelines, cables, hoses, and lines up to 30 inches. All floats come with complete hardware.

Float Size Fill Outside Diameter(in) Inside Diameter(in) Overall Length (in) Buoyancy at 50% (lbs.) Datasheet
3″ Air 13.9 4.5 20 26
3″ Foam 12 3.65 16 15
4″ Air 14 4.25 20 24
4″ Foam 16 5 24 50
6″ Air 21.9 6.75 30 83
6″ Foam 24 6.65 42 215
8″ Air 24 8.75 40 167
8″ Foam 24 8.65 42 204
10″ Air 33.4 10.75 24 212
10″ Foam 32 10.65 36 315
12″ Foam 32 12.65 40 330
14″ Foam 32 14.65 45 355
16″ Foam 45 16.65 45 745
18″ Foam 45 18.65 45 765
20″ Foam 46.5 20.65 45 820
22″ Foam 46.5 22.65 45 804
24″ Foam 48 24.65 45 825

We Are Here To Help!

For help selecting a pipe float, hose, or pump, call us at (760) 821-8112 or submit a request today.

Pipe Floats

Pipe Floats & Dredge Floats

Our pipe floats are designed to prevent slipping along the pipeline by utilizing compression points strategically placed throughout the float which adds friction to the pipeline ensuring no slippage. Sizes available range from 6 inches to 30 inches.
Cable Line Float

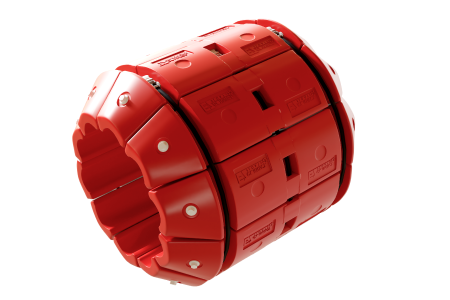

Cable & Hose Floats

Cable & Hose Floats can offer a perfect solution for keeping lengthy electric powered pump and dredge cables afloat and off the seafloor. These floats are highly optimized and designed specifically for fuel lines, hoses, and cables. Sizes available range from 2 inches to 6 inches.

Pipe Float Applications

The DAE Pumps pipe floats provide excellent support for dredging, mining, dewatering, pumping, and many other applications. The snug, non-slip fit ensures the floats stay in place on the pipe and hose during movement. During excavator dredge pumping or with large waves, the movement can cause ordinary floats to slip and hoses to kink or sink. The variation in the hose will reduce the flow of the material and reduce production. However, the DAE Pumps non-slip hose floats and non-kink slurry hoses ensure optimal pumping at full production speed.

Pipe Floats For Dredging

Get Pricing

Pipe Floats | Hose Floats

Please contact our sales team for product questions or if you need help selecting the best dredge or pump system for your application.

Contact Us Today

Get in Touch

Dredging Applications

    DAE Pumps Growler 5000 is ideal for removal of sediment, contaminants, tailing and cleaning to provide for safer navigation, reformation of shorelines and seafloor and other use at:
  • Dams
  • Ports
  • Marinas
  • Rivers
  • Canals
  • Lakes
  • Ponds
  • Oceans
  • Channels
