H-Series Centrifugal Flooded Suction Horizontal Pumps | DAE Pumps

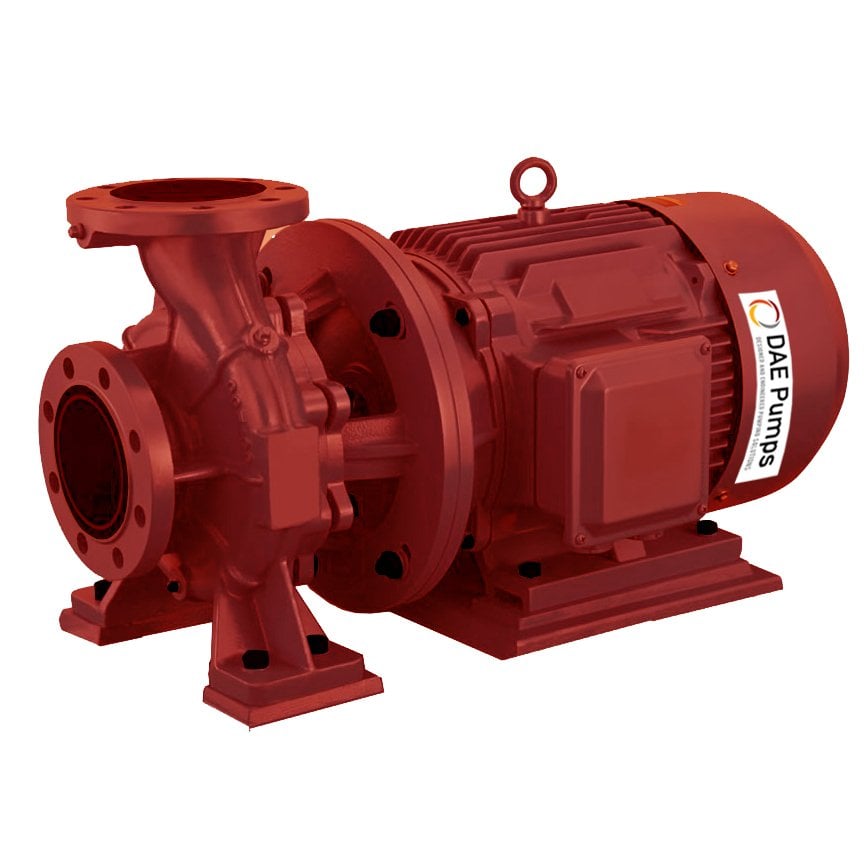

Horizontal Flooded Suction

H-Series Slurry Suction Pumps

DAE Pumps H-Series Flooded Suction Horizontal Pumps are centrifugal pumps that use gravity to feed slurry and liquid from tanks and hoppers to the pump with flow rates up to 16,000 GPM. The H-Series carries a variety of pump sizes with intakes ranging from 1.5- to 14-inches and discharges between 1- and 12-inch. The non-clogging DAE Pumps H-Series flooded suction horizontal pumps pass solids up to 3.5-inches and are easy to start since they are already primed.

The H-Series heavy-duty flooded suction horizontal pumps by DAE Pumps see use in all kinds of applications. These affordable to operate pumps minimize downtime and improve productivity by pumping solids with ease using non-clog impellers. DAE Pumps electric horizontal flooded suction pumps are made of 27% Chrome White Iron. Choose from the metal liner, rubber liner, and high head suction pumps to best fit your flooded suction pumping application.

When selecting a centrifugal horizontal slurry pump for flooded suction, consider the type of material, fluid viscosity, distance to pump, target GPM, and other job-specific factors. These factors help determine the pump’s capacity, head, efficiency, power, and speed.

DAE Pumps offer the H-Series flooded suction pump models:
Metal Liner: H151, H215, H320H430H640, H860, H1080, H1210,  and H1412.
High Head Metal Liner: H151H, H320HH430H, H640H, and H860H.
Rubber Liner: H151R, H215R, H320R, H430R, H640R, H860R, H1080R, H1210R, and H1412R.

Get your H-Series horizontal pump today!

Get Pricing

H-Series Flooded Suction Pumps

Features:

  • Variety of sizes

  • Handles liquids and solids up to 3.5-inches

  • Heavy-duty construction

  • Non-clogging

  • Enclosed impeller for higher efficiency

  • Anti-wear, no leak mechanical seal

  • Flow rate up to 18,000 GPM

  • Available for fully-automatic continuous priming

  • Front adjustable wear plate

  • Hardness > 600BHN wears better than standard cast iron

Flooded Suction Pumps

Specifications:

Model           Volume                Solids        Intake        Discharge

H151             170 GPM            .5″                1.5″               1″
H151H         160 GPM            .6″                1.5″               1″
H151R         140 GPM             .8″                1.5″              1″
H215            400 GPM             .75″             2″                  1.5″
H215R        265 GPM              .63″             2″                  1.5″
H320           490 GPM              1.9″             3″                  2″
H320H       642 GPM              1.2″             3″                  2″
H320R       265 GPM               .8″               3″                  2″
H430          900 GPM               1.1″             4″                  3″
H430H      1600 GPM            1.5″             4″                  3″
H430R       900 GPM               1.1″            4″                  3″
H640          2200 GPM            1.7″             6″                  4″
H640H      3500 GPM            2.2″             6″                  4″
H640R       1850 GPM           1.3″             6″                  4″
H860          3800 GPM            4″                 8″                  6″
H860H      4750 GPM            2.75″          8″                  6″
H860R       4000 GPM           2.3″             8″                  6″
H1080       8300 GPM            3″                10″               8″
H1080R    7100 GPM           3″                 10″               8″
H1210       9000 GPM            3.4″            12″               10″
H1210R    8000 GPM           3.4″            12″               10″
H1412       16,000 GPM        3.5″            14″              12″
H1412R    14,670 GPM       4.1″             14″              12″

Suffix Reference:
(blank) = Metal Liner
H = High Head Metal Liner
R = Rubber Liner



Applications:

Models:

DAE Pumps H151 Flooded Suction Pumps – 170 GPM / .5″ Particles / 20 HP / Metal Liner

DAE Pumps H151 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 1.5-inch intake and 1-inch discharge that provide a flow rate of up to 170 GPM with a 20 HP motor. The non-clogging H151 horizontal flooded suction pumps have a metal liner that allows for up to .5-inches solids to pass. In addition, they are available with 1200 to 3800 RPM electric motors.   Read More…

DAE Pumps H151H Flooded Suction Pumps – 160 GPM / .6″ Particles / 40 HP / Metal Liner

DAE Pumps H151H Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 1.5-inch intake and 1-inch discharge that provide a flow rate of up to 160 GPM with a 40 HP motor. The non-clogging H151H high head horizontal flooded suction pumps have a metal liner that allows for up to .6-inches solids to pass. In addition, they are available with 1400 to 2200 RPM electric motors.   Read More…

DAE Pumps H151R Flooded Suction Pumps – 140 GPM / .8″ Particles / 20 HP / Rubber Liner

DAE Pumps H151R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 1.5-inch intake and 1-inch discharge that provide a flow rate of up to 140 GPM with a 20 HP motor. The non-clogging H151R horizontal flooded suction pumps have a rubber liner that allows for up to .8-inches solids to pass. In addition, they are available with 1400 to 3400 RPM electric motors.   Read More…

DAE Pumps H215 Flooded Suction Pumps – 400 GPM / .75″ Particles / 20 HP / Metal Liner

DAE Pumps H215 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 2-inch intake and 1.5-inch discharge that provide a flow rate of up to 400 GPM with a 20 HP motor. The non-clogging H215 horizontal flooded suction pumps have a metal liner that allows for up to .75-inches solids to pass. In addition, they are available with 1200 to 3200 RPM electric motors.    Read More…

DAE Pumps H215R Flooded Suction Pumps – 265 GPM / .63″ Particles / 20 HP / Rubber Liner

DAE Pumps H215R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 2-inch intake and 1.5-inch discharge that provide a flow rate of up to 265 GPM with a 20 HP motor. The non-clogging H215R horizontal flooded suction pumps have a rubber liner that allows for up to .63-inches solids to pass. In addition, they are available with 1000 to 2600 RPM electric motors. Read More…

DAE Pumps H320 Flooded Suction Pumps – 490 GPM / 1.9″ Particles / 40 HP / Metal Liner

DAE Pumps H320 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 3-inch intake and 2-inch discharge that provide a flow rate of up to 490 GPM with a 40 HP motor. The non-clogging H320 horizontal flooded suction pumps have a metal liner that allows for up to 1.9-inches solids to pass. In addition, they are available with 1500 to 3100 RPM electric motors.   Read More…

DAE Pumps H320H Flooded Suction Pumps – 642 GPM / 1.2″ Particles / 80 HP / Metal Liner

DAE Pumps H320H Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 3-inch intake and 2-inch discharge that provide a flow rate of up to 642 GPM with an 80 HP motor. The non-clogging H320H high head horizontal flooded suction pumps have a metal liner that allows for up to 1.2-inches solids to pass. In addition, they are available with 850 to 1450 RPM electric motors.    Read More…

DAE Pumps H320R Flooded Suction Pumps – 265 GPM / .8″ Particles / 40 HP / Rubber Liner

DAE Pumps H320R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 3-inch intake and 2-inch discharge that provide a flow rate of up to 265 GPM with a 40 HP motor. The non-clogging H320R horizontal flooded suction pumps have a rubber liner that allows for up to .8-inches solids to pass. In addition, they are available with 1300 to 2100 RPM electric motors.   Read More…

DAE Pumps H430 Flooded Suction Pumps – 900 GPM / 1.1″ Particles / 80 HP / Metal Liner

DAE Pumps H430 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 4-inch intake and 3-inch discharge that provide a flow rate of up to 900 GPM with an 80 HP motor. The non-clogging H430 horizontal flooded suction pumps have a metal liner that allows for up to 1.1-inches solids to pass. In addition, they are available with 1000 to 2200 RPM electric motors.   Read More…

DAE Pumps H430H Flooded Suction Pumps – 1600 GPM / 1.5″ Particles / 160 HP / Metal Liner

DAE Pumps H430H Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 4-inch intake and 3-inch discharge that provide a flow rate of up to 1600 GPM with a 160 HP motor. The non-clogging H430H high head horizontal flooded suction pumps have a metal liner that allows for up to 1.5-inches solids to pass. In addition, they are available with 600 to 1565 RPM electric motors.   Read More…

DAE Pumps H430R Flooded Suction Pumps – 900 GPM / 1.1″ Particles / 40 HP / Rubber Liner

DAE Pumps H430R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 4-inch intake and 3-inch discharge that provide a flow rate of up to 900 GPM with a 40 HP motor. The non-clogging H43R0 horizontal flooded suction pumps have a rubber liner that allows for up to 1.1-inches solids to pass. In addition, they are available with 800 to 1800 RPM electric motors.    Read More…

DAE Pumps H640 Flooded Suction Pumps – 2200 GPM / 1.7″ Particles / 160 HP / Metal Liner

DAE Pumps H640 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 6-inch intake and 4-inch discharge that provide a flow rate of up to 2200 GPM with a 160 HP motor. The non-clogging H640 horizontal flooded suction pumps have a metal liner that allows for up to 1.7-inches solids to pass. In addition, they are available with 800 to 1600 RPM electric motors.    Read More…

DAE Pumps H640H Flooded Suction Pumps – 3500 GPM / 2.2″ Particles / 348 HP / Metal Liner

DAE Pumps H640H Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 6-inch intake and 4-inch discharge that provide a flow rate of up to 3500 GPM with a 348 HP motor. The non-clogging H640H high head horizontal flooded suction pumps have a metal liner that allows for up to 2.2-inches solids to pass. In addition, they are available with 600 to 1000 RPM electric motors.  Read More…

DAE Pumps H640R Flooded Suction Pumps – 1850 GPM / 1.3″ Particles / 160 HP / Rubber Liner

DAE Pumps H640R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 6-inch intake and 4-inch discharge that provide a flow rate of up to 1850 GPM with a 160 HP motor. The non-clogging H640R horizontal flooded suction pumps have a rubber liner that allows for up to 1.3-inches solids to pass. In addition, they are available with 800 to 1800 RPM electric motors.  Read More…

DAE Pumps H860 Flooded Suction Pumps – 3800 GPM / 4″ Particles / 160 HP / Metal Liner

DAE Pumps H860 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have an 8-inch intake and 6-inch discharge that provide a flow rate of up to 3800 GPM. The non-clogging H860 horizontal flooded suction pumps have a metal liner that allows for up to 4-inches solids to pass. In addition, they are available with 400 to 1140 RPM electric motors.  Read More…

DAE Pumps H860H Flooded Suction Pumps – 4750 GPM / 2.75″ Particles / 750 HP / Metal Liner

DAE Pumps H860H Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have an 8-inch intake and 6-inch discharge that provide a flow rate of up to 4750 GPM. The non-clogging H860H high head horizontal flooded suction pumps have a metal liner that allows for up to 2.75-inches solids to pass. In addition, they are available with 500 to 1000 RPM electric motors.    Read More…

DAE Pumps H860R Flooded Suction Pumps – 4000 GPM / 2.3″ Particles / 160 HP / Rubber Liner

DAE Pumps H860R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have an 8-inch intake and 6-inch discharge that provide a flow rate of up to 4000 GPM. The non-clogging H860R horizontal flooded suction pumps have a rubber liner that allows for up to 2.3-inches solids to pass. In addition, they are available with 400 to 1000 RPM electric motors.  Read More…

DAE Pumps H1080 Flooded Suction Pumps – 8300 GPM / 3″ Particles / 950 HP / Metal Liner

DAE Pumps H1080 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 10-inch intake and 8-inch discharge that provide a flow rate of up to 8300 GPM with up to 950 HP motor. The non-clogging H1080 horizontal flooded suction pumps have a metal liner that allows for up to 3-inches solids to pass. In addition, they are available with 400 to 850 RPM electric motors.    Read More…

DAE Pumps H1080R Flooded Suction Pumps – 7100 GPM / 3″ Particles / 750 HP / Rubber Liner

DAE Pumps H1080R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 10-inch intake and 8-inch discharge that provide a flow rate of up to 7100 GPM with up to 750 HP motor. The non-clogging H1080R horizontal flooded suction pumps have a rubber liner that allows for up to 3-inches solids to pass. In addition, they are available with 400 to 750 RPM electric motors.    Read More…

DAE Pumps H1210 Flooded Suction Pumps – 9000 GPM / 3.4″ Particles / 750 HP / Metal Liner

DAE Pumps H1210 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 12-inch intake and 10-inch discharge that provide a flow rate of up to 9000 GPM with a 750 HP motor. The non-clogging H1210 horizontal flooded suction pumps have a metal liner that allows for up to 3.4-inches solids to pass. In addition, they are available with 300 to 800 RPM electric motors.    Read More…

DAE Pumps H1210R Flooded Suction Pumps – 8000 GPM / 3.4″ Particles / 805 HP / Rubber Liner

DAE Pumps H1210R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 12-inch intake and 10-inch discharge that provide a flow rate of up to 8000 GPM with an 805 HP motor. The non-clogging H1210R horizontal flooded suction pumps have a rubber liner that allows for up to 3.4-inches solids to pass. In addition, they are available with 300 to 650 RPM electric motors.    Read More…

DAE Pumps H1412 Flooded Suction Pumps – 18,000 GPM / 3.5″ Particles / 1610 HP / Metal Liner

DAE Pumps H1412 Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 14-inch intake and a 12-inch discharge that provide a flow rate of up to 18,000 GPM with a 1610 HP motor. The non-clogging H1412 horizontal flooded suction pumps have a metal liner that allows for up to 3.5-inch solids to pass. In addition, they are available with 300 to 600 RPM electric motors.    Read More…

DAE Pumps H1412R Flooded Suction Pumps – 14,670 GPM / 4.1″ Particles / 805 HP / Rubber Liner

DAE Pumps H1412R Flooded Suction Pumps are heavy-duty centrifugal horizontal pumps. They have a 14-inch intake and a 12-inch discharge that provide a flow rate of up to 14,670 GPM with an 805 HP motor. The non-clogging H1412R horizontal flooded suction pumps have a rubber liner that allows for up to 4.1-inch solids to pass. In addition, they are available with 300 to 500 RPM electric motors.  Read More…

Accessories:

Get turnkey solutions that include dredge hoses, slurry flow meters, power units, and more. Choose from multiple sizes of slurry hoses for the transferring of materials, wireless flow meters for measuring the flow rate in gallons per minute of liquid, and power units for operation. Parts are always in stock and available for immediate shipping to anywhere in the US and the world.

Get Pricing

H-Series Flooded Suction Pump

Dredging Applications

    DAE Pumps Growler 5000 is ideal for removal of sediment, contaminants, tailing and cleaning to provide for safer navigation, reformation of shorelines and seafloor and other use at:
  • Dams
  • Ports
  • Marinas
  • Rivers
  • Canals
  • Lakes
  • Ponds
  • Oceans
  • Channels
