La Paz Hydraulic Submersible Pumps
The DAE Pumps La Paz Hydraulic Submersible Pumps are the industry’s best performing and powerful hydraulic submersible slurry pumps. Capable of pumping up to 2500 GPM, the La Paz submersible pumps provide the reliability needed in a no-clog pump and they offer high head performance up to 350 feet, meaning they can raise water to a maximum height of 350 feet. Their compact and lightweight design makes them necessary tools for all site operations. La Paz submersible slurry pumps are designed for an extensive range of suitable applications, including oil & gas, tank cleaning, coal ash, mining, offshore, wastewater, disaster response, confined entries, underwater jetting, and many other uses.
DAE Pumps submersible La Paz pumps have no internal seals, no internal friction, no wear plates, and are easy to maintain in the field. Maintenance is simple with only a single bearing to lubricate, and the twin-motor pumps do not have regular maintenance components. The La Paz hydraulic submersible slurry pumps are self-priming and capable of running dry at full power. These heavy-duty pumps are made in a variety of metals like aluminum, ductile iron, steel, and chromium.
Before use, backpressure should be measured to ensure optimal performance and prevent equipment damage.
Check out each pump for performance and features. Contact us today for help identifying the La Paz pump for you!
Get Pricing
La Paz Hydraulic Submersible Pumps

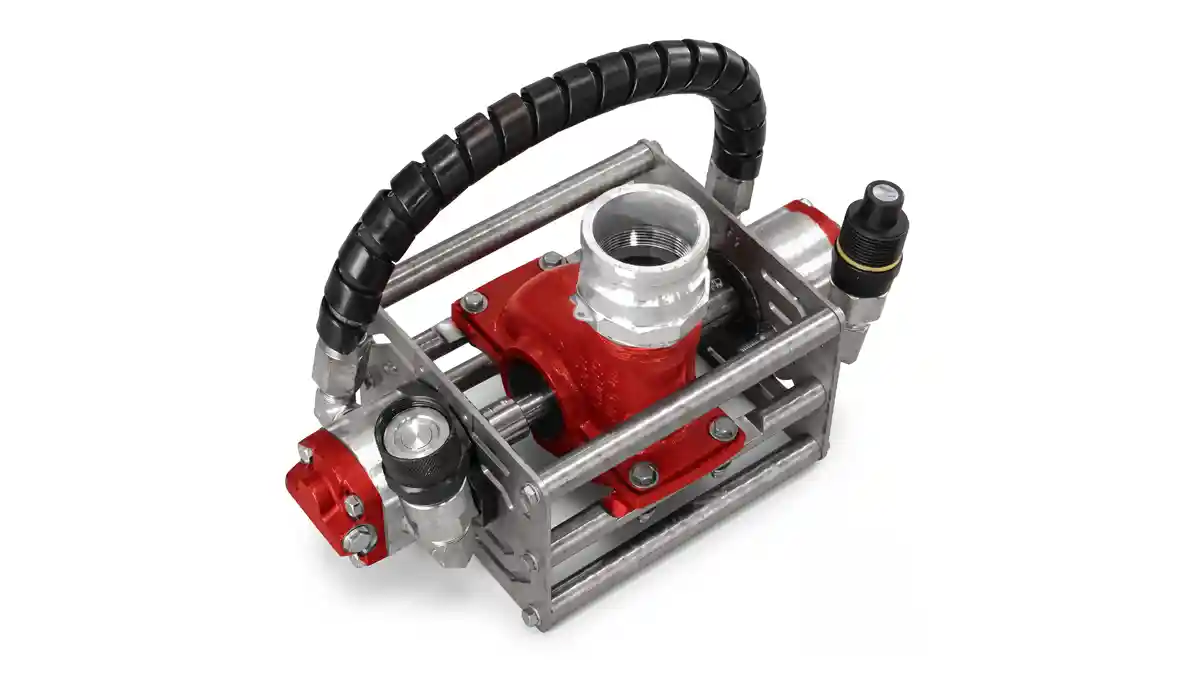

Features Of La Paz Hydraulic Submersible Pumps
La Paz hydraulic submersible pumps stand out for their robust construction and use of high-quality materials, ensuring long-lasting durability even in the harshest environments. These submersible pumps are designed to deliver high flow rates, making them ideal for moving large volumes of liquid quickly and efficiently. The compact design not only makes the pumps portable but also simplifies setup and operation, reducing downtime and maintenance needs. La Paz pumps are engineered to work seamlessly with hydraulic power units, providing the power and reliability needed for demanding pumping tasks. Whether you’re handling liquids with solids or tackling tough applications, the thoughtful design and advanced features of La Paz hydraulic submersible pumps make them a top choice for a wide range of industries.
-
High Flow Rates Up To 1,325 GPM
-
Pumps Oil Field Heavy Solid Solutions
-
Vertical Head Pressures to 350′
-
Able to Run Dry at Full Power
-
Compact Portable Design @ 26 LBS
-
Self Priming Submersible Pump
-
No Mechanical Seals, No Wear Plates
-
Reliable Double Suction Design
-
No Internal Pump Friction
-
Aluminum, Ductile Iron, Steel or Chromium Pumps
Specifications:
| Model | Volume | Head | Discharge |
|---|---|---|---|
| La Paz 3A-SM | 550 GPM | 300′ | 3″ |
| La Paz 3D-SM | 600 GPM | 300′ | 3″ |
| La Paz 3D-TM | 600 GPM | 300′ | 3″ |
| La Paz 3D-TM-LL | 550 GPM | 250′ | 3″ |
| La Paz 3D-TM-TA | 600 GPM | 350′ | 3″ |
| La Paz 4A-SM | 1,000 GPM | 215′ | 4″ |
| La Paz 4C-SG | 1,150 GPM | 185′ | 4″ |
| La Paz 4C-TM | 1,150 GPM | 185′ | 4″ |
| La Paz 4D-SG | 1,200 GPM | 230′ | 4″ |
| La Paz 4D-SM | 1,000 GPM | 215′ | 4″ |
| La Paz 4D-TM | 1,200 GPM | 230′ | 4″ |
| La Paz 4D-TM-TA | 1,325 GPM | 230′ | 4″ |
Benefits of La Paz Hydraulic Submersible Pumps
La Paz hydraulic submersible pumps offer a range of benefits that make them a preferred solution for challenging pumping applications. Their ability to handle liquids containing solids, debris, and sewage makes them ideal for use in construction, mining, and wastewater management. The compact and portable design allows for easy relocation and setup, while the pumps’ high flow rates ensure efficient movement of large volumes of liquid. With the capability to run dry without damage, these submersible pumps minimize maintenance and downtime, providing reliable performance in even the most demanding environments. Built for durability, La Paz pumps are designed to withstand tough tasks, reducing the need for frequent repairs and replacements and delivering long-term value for your operations.
- High Efficiency & Performance
- No Need for Electrical Power
- Durability & Rugged Construction
- Compact & Lightweight
- Versatile Applications
- Safe for Hazardous Environments
- Minimal Maintenance

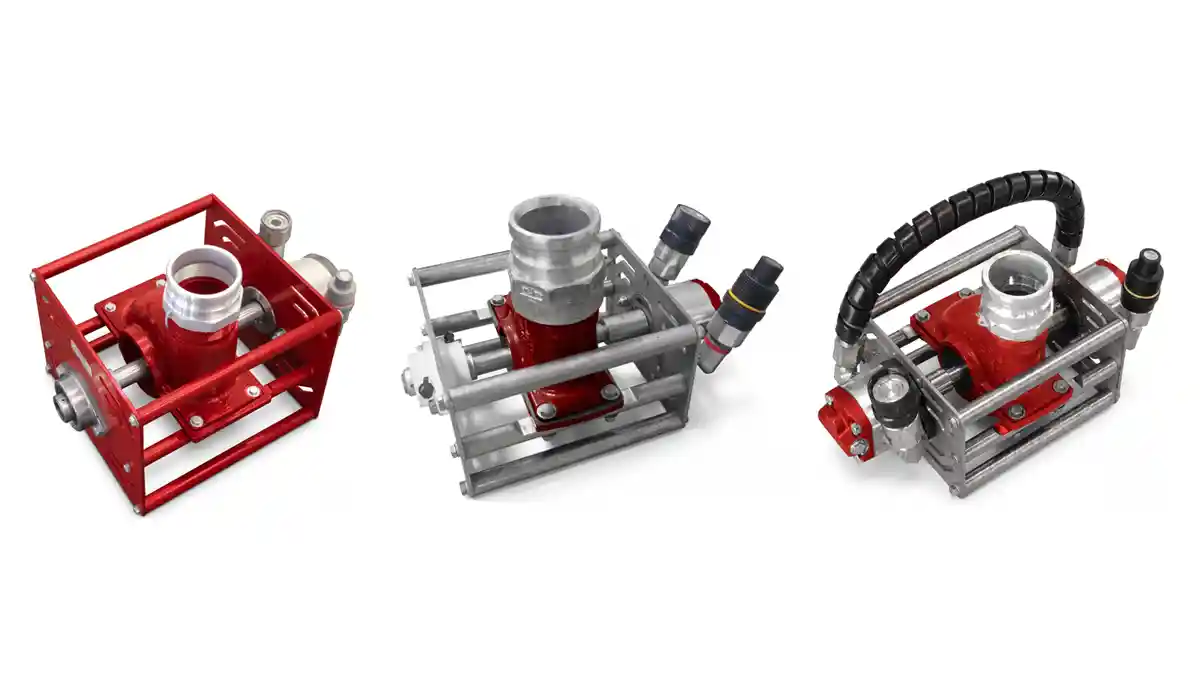

La Paz Pump Types
Aluminum / Chromium / Ductile Iron – A / C / D – La Paz hydraulic submersible slurry pumps are made of the toughest metal to provide you with quality products the perform at the highest level of expectation for pump usage. The small profile and materials we use, make our pumps lightweight, portable, and durable to withstand the shock, vibration, and materials passing through our pumps. Aluminum pumps offer high resistance to corrosion and deterioration, making them ideal for marine, water treatment, desalination, and filtration applications. The La Paz aluminum pumps are designed to handle high capacity flow rates and offering high performance for years of use. The chromium alloys deliver excellent wear resistance in moderate to highly corrosive elements. Ductile iron is a widely accepted material in chemical processes, petrochemical, and petroleum refining fields.
Our pumps are powered by high-quality power packs assembled in the USA, ensuring reliability and top performance.
Motors – SM / TM – The La Paz single and twin motor pumps are designed to pump difficult to pump media where other pumps experience mechanical seal failure when pumping abrasive solids. Two efficient hydraulic gear motors are self-lubricated by the hydraulic fluid powering the pump and are engineered to keep contaminants out.
Slurry Gate – SGThe addition of a slurry gate allows the pump to mix solid/liquid mixtures into slurries for easier pumping. With two modes, mix and pump, the La Paz slurry gate function make for easy adjustment for the material being pumped. Use the Mix Mode when there is fluid in the tank and the solids are at the bottom. The recirculation effect puts the solids into suspension, making it easier to pump. Or, use Pump Mode when the slurry is mixed in the tank and ready for pumping.
Twin Agitator – TAMake sure the material is broken up before entering the pump with the twin agitator models. This feature helps increase the number of solids being fed so you can move more.
Low Level – LLThe low lying intake is ideal for tank clean-out. With the pump intakes suctioning from the bottom, you can move fluid down to less than 1-inch from the bottom of the enclosure to make for the most complete cleaning.
La Paz slurry gate allows switching modes for settled material or mixed slurry pumping.
La Paz slurry gate allows switching modes for settled material or mixed slurry pumping.
Portability and Ease of Use
La Paz hydraulic submersible pumps are specifically designed for portability and ease of setup, making them an excellent choice for applications where pumps need to be moved frequently. The compact design allows for straightforward transportation and quick deployment, saving valuable time and effort on the job site. Both the submersible pumps and their hydraulic power units are engineered to be lightweight and easy to handle, ensuring that the entire pumping system can be relocated as needed. This level of portability and convenience makes La Paz pumps ideal for construction, mining, and wastewater projects where flexibility and rapid response are critical. With their user-friendly design and reliable performance, La Paz hydraulic submersible pumps provide a practical solution for a wide variety of pumping applications.
For help selecting a pipe float, hose, or pump, call us at (760) 821-8112 or submit a request today.
Models:
DatasheetLa Paz 3A-SM Hydraulic Submersible Pumps – 3″ / 550 GPM / 300′ Head
DAE Pumps La Paz 3A-SM Aluminum Hydraulic Submersible Slurry Pump processes material up to 550 GPM at the 300-feet head. This heavy-duty pump with a 3-inch discharge only weighs 28 lbs, making it a lightweight, portable pump for a variety of applications.
The La Paz 3A-SM patented double suction technology produces superior flow rates and high vertical head pressures. It is the only line of submersible pumps with no mechanical seals and no internal friction. The high efficiency hydraulic motors have several advantages over electric submersibles.
La Paz 3D-SM Hydraulic Submersible Pumps – 3″ / 600 GPM / 300′ Head
DAE Pumps La Paz 3D-SM submersible slurry pump is a hydraulic driven pump made of ductile iron and processes material up to 600 GPM at the 300-feet head. This heavy-duty pump with a 3-inch discharge only weighs 42 lbs, making it very portable for a variety of uses.
The La Paz 3D-SM patented double suction technology produces superior flow rates and high vertical head pressures. It is the only line of submersible pumps with no mechanical seals and no internal friction, allowing the pump to run dry or gravitate. The high efficiency hydraulic motors have several advantages over electric submersibles.
La Paz 3D-TM Hydraulic Submersible Pumps – 3″ / 600 GPM / 300′ Head
The La Paz 3D-TM pump is designed for tank cleaning where portability in confined entry space is difficult. Process tanks, frac tanks, and barges all contain abrasive solids that the La Paz 3D-TM are specifically designed to handle. Two efficient hydraulic gear motors are self-lubricated and engineered to keep contaminants out. There are absolutely no mechanical seals, wear plates, or shaft bearings. Handles low level cavitation without damage.
La Paz 3D-TM-LL Hydraulic Submersible Pumps – 3″ / 550 GPM / 250′ Head
The La Paz 3D-TM-LL tank cleaning pumps are ideal for tanks, barges, and confined entry cleaning. Alone, these pumps move fluid down to less than 1″ in the tank. When this pump is coupled to a vacuum truck, virtually all of the fluid can be removed. The La Paz 3D-TM-LL pump easily handles heavy weight mud and solutions without the clogging that plagues traditional air diaphragm pumps. These pumps can be coupled with a 3D wash-down system to make confined entry cleaning faster and safer.
La Paz 3D-TM-TA Hydraulic Submersible Pumps – 3″ / 600 GPM / 350′ Head
DAE Pumps La Paz 3D-TM-TA Twin Motor Severe Service Pump is a hydraulic driven pump made of ductile iron and processes material up to 600 GPM at the 350-feet head. This heavy-duty pump with a 3-inch discharge only weighs 230 lbs, making it very portable for a variety of uses.
The La Paz 3D-TM-TA Severe Service Pump is built to be a survivor. All critical components of the pump are upgraded: including a heat-treated ductile iron impeller and volutes, hardened 17-4 drive shaft, and stainless couplings. The two efficient hydraulic gear motors are self-lubricated by the hydraulic fluid power of the pump. There are absolutely no shaft bearings, no wear plates, no grease fittings, no internal impeller to housing contact, and no mechanical seals to replace in the pump.
La Paz 4A-SM Hydraulic Submersible Pumps – 4″ / 1,000 GPM / 215′ Head
DAE Pumps La Paz 4A-SM Aluminum Hydraulic Submersible Slurry Pump processes material up to 1,000 GPM at the 215-feet head. This heavy-duty pump with a 4-inch discharge only weighs 72 lbs, making it a lightweight, portable pump for a variety of applications.
The La Paz 4A-SM patented double suction technology produces superior flow rates and high vertical head pressures. It is the only line of submersible pumps with no mechanical seals and no internal friction. The high efficiency hydraulic motors have several advantages over electric submersibles.
La Paz 4C-SG Hydraulic Submersible Pumps – 4″ / 1,150 GPM / 185′ Head
DAE Pumps La Paz 4C-SG twin motor submersible slurry pump is a hydraulic driven pump made of chromium and processes material up to 1,150 GPM at the 185-feet head. This heavy-duty pump with a 4-inch discharge only weighs 203 lbs, making it a lightweight, portable pump for a variety of applications.
The slurry gate on the La Paz 4C-SG allows the pump to mix solid/liquid mixtures into slurries for easier pumping. With two modes, mix and pump, the La Paz slurry gate function make for easy adjustment for the material being pumped. Use the Mix Mode when there is fluid in the tank and the solids are at the bottom. The recirculation effect puts the solids into suspension, making it easier to pump. Or, use Pump Mode when the slurry is mixed in the tank and ready for pumping.
La Paz 4C-TM Hydraulic Submersible Pumps – 4″ / 1,150 GPM / 185′ Head
DAE Pumps La Paz 4C-TM twin motor submersible slurry pump is a hydraulic driven pump made of chromium and processes material up to 1,150 GPM at the 185-feet head. This heavy-duty pump with a 4-inch discharge only weighs 178 lbs, making it a lightweight, portable pump for a variety of applications.
The La Paz 4C-TM is designed to pump abrasive solids. It is a self-priming submersible pump capable of running dry. Coal Ash, comprised of fly ash and bottom ash, contains solids that the 4C-TM is specifically engineered to handle. Two efficient self-lubricating hydraulic gear motors power the pump. There are absolutely no wear plates, mechanical seals, impeller to housing contact, or internal friction.
La Paz 4D-SG Hydraulic Submersible Pumps – 4″ / 1,200 GPM / 230′ Head
DAE Pumps La Paz 4D-SG twin motor submersible slurry pump is a hydraulic driven pump made of ductile iron and processes material up to 1,200 GPM at the 230-feet head. This heavy-duty pump with a 4-inch discharge only weighs 157 lbs, making it a lightweight, portable pump for a variety of applications.
The slurry gate on the La Paz 4D-SG allows the pump to mix solid/liquid mixtures into slurries for easier pumping. With two modes, mix and pump, the La Paz slurry gate function make for easy adjustment for the material being pumped. Use the Mix Mode when there is fluid in the tank and the solids are at the bottom. The recirculation effect puts the solids into suspension, making it easier to pump. Or, use Pump Mode when the slurry is mixed in the tank and ready for pumping.
La Paz 4D-SM Hydraulic Submersible Pumps – 4″ / 1,000 GPM / 215′ Head
DAE Pumps La Paz 4D-SM submersible slurry pump is a hydraulic driven pump made of ductile iron and processes material up to 1,000 GPM at the 215-feet head. This heavy-duty pump with a 4-inch discharge only weighs 230 lbs, making it very portable for a variety of uses.
The La Paz 4D-SM patented double suction technology produces superior flow rates and high vertical head pressures. It is the only line of submersible pumps with no mechanical seals and no internal friction, allowing the pump to run dry or gravitate. The high efficiency hydraulic motors have several advantages over electric submersibles.
La Paz 4D-TM Hydraulic Submersible Pumps – 4″ / 1,200 GPM / 230′ Head
DAE Pumps La Paz 4D-TM Twin Motor submersible slurry pump is a hydraulic driven pump made of ductile iron and processes material up to 1,200 GPM at the 230-feet head. This heavy-duty pump with a 4-inch discharge only weighs 157 lbs, making it very portable for a variety of uses.
The La Paz 4D-TM pump is designed to pump difficult to pump media where other pumps experience mechanical seal failure. Clarifiers, oilfield waste, and large tanks all contain solids that the 4D-TM is specifically designed to handle. Two efficient hydraulic gear motors are self-lubricated by the hydraulic fluid powering the pump and are engineered to keep contaminants out. There are no wear plates, mechanical seals, or impeller to housing contacted that are effected by
La Paz 4D-TM-TA Hydraulic Submersible Pumps – 4″ / 1,325 GPM / 230′ Head
DAE Pumps La Paz 4D-TM-TA Twin Motor Severe Service Pump is a hydraulic driven pump made of ductile iron and processes material up to 1,325 GPM at the 230-feet head. This heavy-duty pump with a 4-inch discharge only weighs 230 lbs, making it very portable for a variety of uses.
The La Paz 4D-TM-TA Severe Service Pump is built to be a survivor. All critical components of the pump are upgraded: including a heat-treated ductile iron impeller and volutes, hardened 17-4 drive shaft, and stainless couplings. The two efficient hydraulic gear motors are self-lubricated by the hydraulic fluid power of the pump. There are absolutely no shaft bearings, no wear plates, no grease fittings, no internal impeller to housing contact, and no mechanical seals to replace in the pump.
Accessories
Get turnkey solutions that include dredge hoses, slurry flow meters, power units, tanks for the collection and storage of slurry, and more. These accessories, such as tanks, are designed to integrate seamlessly into the overall pumping process, ensuring efficient material handling and process optimization. Choose from multiple sizes of slurry hoses for the transferring of materials, wireless flow meters for measuring the flow rate in gallons per minute of liquid, and power units for operation. Parts are always in stock and available for immediate shipping to anywhere in the US and the world.
Maintenance and Repair
Regular maintenance is essential for ensuring the optimal performance and longevity of slurry pumps, including electric slurry pumps and submersible slurry pumps. In demanding applications such as mining, dredging, and construction, pumps are often exposed to high viscosity slurries, abrasive materials, and challenging conditions that can accelerate wear and increase the risk of clogging. To address these challenges, modern slurry pumps are constructed with wear resistant materials and specially designed impellers and wear parts, significantly reducing the frequency of repairs and minimizing downtime.
One of the standout features of today’s electric slurry pumps is their easy maintenance. Many models are engineered for quick and straightforward replacement of wear parts and seals, allowing operators to perform routine maintenance with minimal disruption to operation. This not only helps to keep operating costs and energy consumption in check, but also ensures that the pump continues to deliver efficient and reliable performance, even when handling tough materials like fly ash or sediment.
Regular inspection and verification of key pump components—such as the impeller, seals, and pressure systems—are crucial for identifying signs of wear before they develop into major issues. By adjusting the impeller and replacing worn parts as needed, operators can optimize the pump’s efficiency and extend its service life. This proactive approach to maintenance is especially important in industries where downtime can be costly and where the security and reliability of pumping systems are paramount.
In addition to in-house maintenance, many manufacturers offer specialized repair services, spare parts, and expert technical support to help operators maintain the quality and performance of their slurry pumps. When selecting a pump, it’s important to consider not only its suitability for your specific application, but also the maintenance requirements and support services available. By investing in high-quality, wear resistant pumps and adhering to a regular maintenance schedule, operators can reduce operating costs, minimize downtime, and ensure safe, efficient operation across a wide range of industries.
Ultimately, prioritizing maintenance and repair is key to maximizing the productivity and reliability of your slurry pumping systems. Regular verification and prompt response to any issues help maintain the security and efficiency of your operation, allowing you to meet the demands of even the most challenging pumping applications.
